Plastic rotameter
.jpg) |
.jpg) |

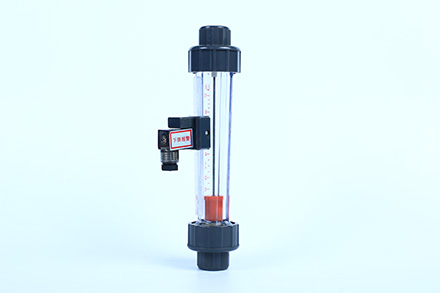

| Alarm plastic rotameter | Socket plastic rotameter |
.jpg) |
.jpg) |

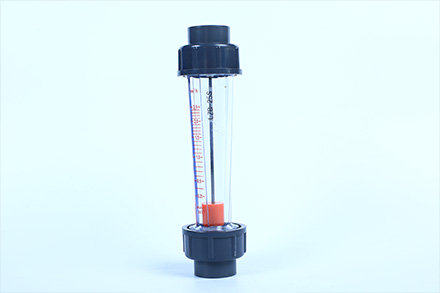

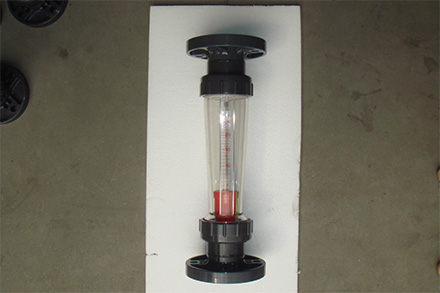

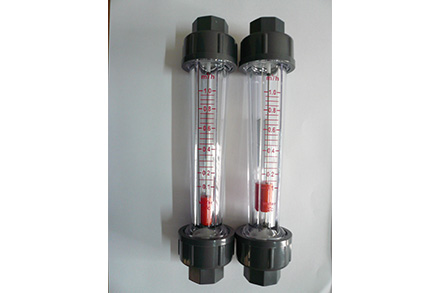

| Flange plastic rotameter | Threaded plastic rotameter |
Summary
LZB - () S plastic tube float flowmeter is designed for some special occasions and has a certain anti-corrosion performance for measuring liquid. It is mainly used in chemical industry, light industry, medical treatment, and environmental protection, especially suitable for occasions that cannot contact with metal and widely used in environmental protection drainage treatment.
Product features
◆ Light weight, not easy to break
◆ Non-toxic and tasteless, easy to use
◆ Corrosion resistance
Technical indicators
◆ Diameter: short pipe DN15, 25, 32, 50, 65, 100, 125, 150 (with guide rod) long pipe DN15, 25, 50, 150 (without guide rod)
◆ Measuring range: short pipe 6L/h~220m3/h
Long pipe 6L/h~16m3/h
◆ Range ratio: 10:1
◆ Accuracy level: 4
◆ Measured fluid
Pressure: ≤ 0.6MPa
Temperature: 0~60 ℃
◆ Connection mode: threaded connection, intubation connection, flange connection
Flow range
Long tube type:
Nominal diameter DN(mm) |
Model | Measuring range water，20℃ | Permitted fluid condition |
| 15 | LZB-15S | 10-100L/h 16-160L/h 25-250L/h 40-400L/h 60-600L/h |
Accuracy class: Level 4 Withstand voltage: ≤1MPa Medium temperature: 0℃~60℃ |
| 25 | LZB-25S | 100-1000L/h 160-1600L/h 250-2500L/h 300-3000L/h |
|
| 50 | LZB-50S | 0.4-4m³/h 0.6-6m³/h 1-10m³/h 1.6-16m³/h |
Note: There are two kinds of connection methods: plug connection and pipe thread connection. The structure diagram takes plug connection as an example.
Short pipe type:
Nominal diameter DN(mm) |
Model | Measuring range water，20℃ | Permitted fluid condition |
| 15 | LZB-15S | 10-100L/h 16-160L/h 25-250L/h 40-400L/h 60-600L/h |
Accuracy class: Level 4 Withstand voltage: ≤1MPa Medium temperature: 0℃~60℃ |
| 25 | LZB-25S | 100-1000L/h 160-1600L/h 250-2500L/h 300-3000L/h |
|
| 32 | LZB-32S | 400-4000L/h 600-6000L/h |
|
| 50 | LZB-50S | 1-10m³/h 1.6-16m³/h |
|
| 65 | LZB-65S | 5-25m³/h 8-40m³/h 12-60m³/h |
| Nominal diameter DN(mm) |
Model | Measuring range water，20℃ | Connection height(mm) | Permitted fluid condition |
| 100 | (flange)LZB-100S | 8-50 | 555 | Accuracy class: Level 4 Withstand voltage: ≤1MPa Medium temperature: 0℃~60℃ |
| 14-90 | ||||
| 16-120 | ||||
| 125 | (flange)LZB-125S | 25-150 | 555 | |
| 25-180 | ||||
| 25-200 | ||||
| 150 | (flange)LZB-150S | 25-150 | 555 | |
| 25-180 | ||||
| 25-200 |
Note: There are two types of flow meters: with regulating valve (WB type) and without regulating valve (W type). LZB-WF and LZB-WBF are corrosion resistant.

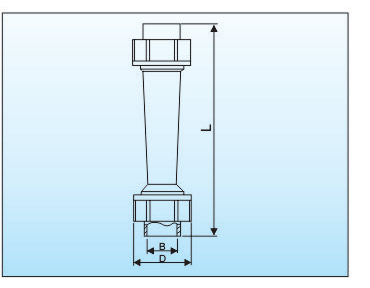

Overall dimension |
|
Installation dimension
Long tube type:
| Nominal diameter DN(mm) |
Model | L | D1 | D2 | |
| Plug connection | Pipe thread connection | ||||
| 15 | LZB-15S | 280 | Ф20 | G½” | Ф45 |
| 25 | LZB-25S | 380 | Ф32 | G¾” | Ф68 |
| 50 | LZB-50S | 435 | Ф63 | G1½” | Ф98 |
Short pipe type:
Nominal diameter DN(mm) |
Model | L | D1 | D2 | |
| Plug connection | Pipe thread connection | ||||
| 15 | LZB-15S | 200 | Ф20 | G½” | Ф45 |
| 25 | LZB-25S | 226 | Ф32 | G¾” | Ф60 |
| 32 | LZB-32S | 288 | Ф40 | G1” | Ф74 |
| 50 | LZB-50S | 341 | Ф63 | G1½” | Ф98 |
| 65 | LZB-65S | 430 | Ф75 | G2” | Ф122 |
